1t/h integrated domestic sewage treatment equipment system configuration

Brief introduction of 1t/h integrated domestic sewage treatment equipment

-Weifang Xiaoyu Environmental Protection Water Treatment Equipment Co., Ltd.

First, the company profile

Weifang Xiaoyu Environmental Protection Co., Ltd. is a manufacturer that treats all kinds of life and hospital sewage. It has more professional production experience and more peace of mind!

Xiaoyu environmental protection sewage treatment equipment is of high quality and excellent price, which is good!

All over the country are installed and the after-sales service is fast!

Factory processing stock all kinds of models all, fast delivery, quick installation, avoid waiting!

Second, equipment reference quotation

Integrated sewage treatment equipment is used to treat 10 tons of box price of 29,500 yuan a day .

Integrated sewage treatment equipment is used to treat 20 tons of box price of 32,500 yuan a day .

Integrated sewage treatment equipment is used to treat 30 tons of box price of 36,500 yuan a day .

Integrated sewage treatment equipment is used to treat 50 tons of box price of 42,500 yuan a day .

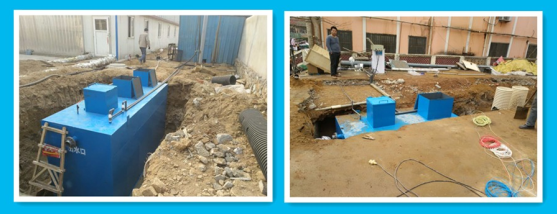

Third, equipment installation and construction site

Fourth, the sewage treatment equipment part of the introduction

Device debugging instructions

working principle:

The removal of organic pollutants and ammonia nitrogen from sewage treatment equipment mainly depends on the AO biological treatment process in the equipment . The working principle is in Class A. Due to the high concentration of organic matter in the sewage, the microorganisms are in anoxic state. At this time, the microorganisms are facultative microorganisms, which convert the organic nitrogen in the sewage into NH3-N , and use organic carbon as electron supply. The body converts NO2-N and NO3-N into N2 , and also uses a part of the organic carbon source and NH3-N to synthesize new cellular substances. Therefore, the A -stage pool not only has a certain organic matter removal function, but also reduces the organic load of the subsequent aerobic tank to facilitate the nitrification, and relies on the higher concentration of organic matter present in the raw water to complete the denitrification. Nutritional pollution. At the O level, since the organic matter has been greatly reduced, there is still a certain amount of organic matter and a high NH3-N . In order to further oxidize and decompose the organic matter, and at the same time, the nitrification can proceed smoothly under the condition that the carbonization is completed, and the aerobic biological contact oxidation tank with the lower organic load is disposed at the O level. There are mainly aerobic microorganisms and self-oxidizing bacteria (nitrifying bacteria) in the O -class pool. Among them, aerobic microorganisms decompose organic matter into CO2 and H2O ; autotrophic bacteria (nitrifying bacteria) use inorganic carbon produced by decomposition of organic matter or CO2 in the air as a nutrient source to convert NH3-N in sewage into NO 3-N , The NO 3-N , the effluent part of the O -stage pool is returned to the A - stage pool to provide an electron acceptor for the A -stage tank, and the nitrogen pollution is finally eliminated by denitrification.

main feature:

1. The sewage treatment equipment can be buried below the surface of the earth. The surface can be used as a greening or plaza land. Therefore, the equipment does not occupy the surface area, does not need to be built, and does not need heating and insulation.

2 , sewage treatment equipment consists of five-stage pool, using 4mm lining FRP , anti-corrosion life can reach more than 10 years.

3. The AO biological treatment process in the sewage treatment equipment adopts the push-flow biological contact oxidation tank, and its treatment effect is better than that of the fully mixed or the second- and third-stage series fully mixed biological contact oxidation tank. Moreover, it is smaller than the active sewage pool, has strong adaptability to water quality, good impact resistance, stable effluent quality, and no sludge expansion. At the same time, a new type of composite filler is used in the biological contact oxidation tank, which has a large specific surface area, and is convenient for microbial hanging and stripping. Under the same organic load condition, the removal rate of organic matter is higher than other fillers, and the oxygen in the air can be improved. Solubility in water.

4. Since the biological contact oxidation tank is produced in the AO biological treatment process, the volumetric load of the filler is relatively low, and the microorganism is in the self-oxidation stage, so the amount of sludge is small. In addition, the moisture content of the sludge produced by the biological contact oxidation pond is far below the moisture content of the sludge produced by the activated sludge tank. Therefore, the amount of sludge generated by the sewage after the sewage treatment equipment is small, and it is generally only necessary to discharge the mud once every 90 days.

5. The sewage treatment equipment adopts a low-noise rotary fan, which makes the noise of the equipment running less than 60 decibels, reducing the impact on the surrounding environment. Reduces noise, reduces energy consumption, and saves operating costs.

6. The sewage treatment equipment is equipped with a soil deodorization facility. The utility model utilizes the upper space of the reinforced concrete structure to improve the soil and the air pipe, and the malodorous component is dissolved in the water contained in the soil through the soil layer, and then adsorbed on the surface of the soil (or discharged into the sewer) and The chemical reaction is transferred to the soil, and the zui is finally decomposed by the microorganisms therein to achieve the purpose of deodorization. (This time is the direct access adjustment pool)

7. The sewage treatment equipment is equipped with automatic electrical control system and equipment damage alarm system, and the equipment runs reliably. Every day, someone must be cared for, need to be managed by someone, and usually have monthly or quarterly maintenance and care.

Equipment installation, commissioning and maintenance

Installation: This device consists of a set of pools. The pool body is buried underground. It is required that the excavation width of the surrounding area must be 500 to 600 mm or more larger than the plane dimension of the equipment .

According to the installation drawing, the steel structure pool body is hoisted by crane (also can be made on site). It must be carried out under the guidance of the technicians of our factory during the installation. The position and direction of the box cannot be misplaced, and then the factory is responsible for the pool. The connection between the pipes. The steel structure pool body is to be welded to the base embedded parts. In order to prevent groundwater from floating up the equipment. After the installation is completed, the equipment must be filled with water. The joints of the pipelines are not leaked, and the soil can be filled into the space around the equipment and leveled, and the ground is leveled. Connect the control panel of the electric control cabinet to the equipment, and connect the electric control cabinet to the power supply. Pay attention to the fan (distribution system) and the steering of the pump when wiring. After the equipment is installed, it must be ensured that there is no water on the rainy ground. The upper part of the steel structure tank body shall not be pressed with heavy objects. The equipment generally does not evacuate the internal sewage to prevent the groundwater from floating up.

Commissioning: The commissioning work is carried out by our factory (about 15 days). In order to speed up the commissioning, the bacteria can be put into the plant . In order to avoid the loss of bacteria, the water intake can be reduced and the fan (starting the gas system) can be started for aeration until the filler is applied. A layer of orange-yellow biofilm is produced, that is, the filler film is completed, and then the water intake is increased to the rated flow rate. After the filling film is completed, the microorganisms in the Class A biological pool are domesticated, that is, the aeration amount is gradually reduced, and the Class A biological pool is in an anoxic state, so that the microorganisms on the filler become facultative microorganisms. The microorganisms are then adapted to operate until the design requirements are met.

Equipment maintenance: The sewage treatment equipment should establish a regular maintenance system. The main vulnerable parts are valves and pumps. Regularly check the looseness of the screws in the valve and the pump, the tightness of the packing layer, the temperature of the bearing and the oil and oil quantity of the lubricating oil to ensure that the components are normal, and check the dosage and remaining amount of the disinfectant. If necessary, adjust the dosage and supplement the disinfectant. Valves and pumps must be serviced and repaired every 2000-3000 hours.

Electrical installation and operation instructions

Automatic working process

When the switch is turned to the automatic position:

A : Lift pump:

The power of two lifting pumps is 1KW , which is controlled by low, medium and high liquid level floats. When the low liquid level is disconnected, 2 sewage lift pumps stop working. When the middle liquid level is turned on, 1 lift pump automatically runs. When the high liquid level float ball is connected, 2 lift pumps work, single pump operation The lift pumps are exchanged once every 5 hours.

B : sewage return pump: 1 set, power is 1KW

Sewage return pump and lift pump linkage

C : mechanical grille: 1 set, power is 0.55KW

Mechanical grille and lift pump linkage

D : Solenoid valve: 1 ( 2 ), 220V

The solenoid valve works for 3 minutes every 8 hours . (can be set according to the actual situation on site)

E : chlorine dioxide generator: 1 set, 220V (electrolysis method ~ 1.5kw )

The chlorine dioxide generator is linked to the lift pump.

F : Two intermediate pool lift pumps (into the filter) 3KW Ã— 2 sets

Two intermediate pool lift pumps (into the filter, one for each.) The pump power is 3KW , which is controlled by a low level float. When the low liquid level is disconnected, the lift pump stops working. When the medium liquid level is turned on, one lift pump automatically runs, and the lift pump exchanges each other every four hours in a single pump operation .

Manual work process

When the switch is turned to the manual position, press each button to turn it on once, and press it again to turn off. When working manually, if you call after a short power outage, all devices will stop working. If you want to continue working, you need to restart.

Installation and use

1. Connect the electrical appliances and the electrical control cabinet with the wires as specified, and check if the wiring is correct.

2. Check if the input power supply voltage is correct.

3. Check whether the electrical appliances meet the requirements and whether the grounding is safe and reliable.

4 , the above conditions meet the requirements, open the total air switch, the entire system is put into operation.

5 , pay special attention to the float connection, bus and up and down position can not be connected wrong, otherwise it can cause frequent switching after the pump working period.

Maintenance and attention

1. The central controller adopts PLC . There are large-scale integrated circuits and various precision electronic components inside. Please do not open it at will.

2 , the electric control box should not be stored in the open air, or placed in places that may splash, condensation, and toxic, corrosive gases.

3 , should be placed vertically when transporting, can not be placed upside down or other forms, can not be installed in places with vibration impact.

4 , can not share the grounding wire with other high-voltage equipment, the PC has a separate grounding wire in the upper part, can not be idle, should be grounded separately from the control cabinet housing.

5 , can not be installed in places with strong noise and conductive dust.

6. The relative humidity at the place of installation is 80% - 90% , and the ambient temperature is -20 Â°C ~ 40 Â°C. The indoor ventilation should be good, clean and tidy.

Embedding requirements and simple calculation

Cabinet to use electrical connection between the generally buried underground pipe laying, belongs to the basic engineering (I have to plant equipment installation and then finished laying), the user buried, buried underground pipe depth of 0.5 m south requirement when infrastructure construction Below, special areas, comply with user requirements.

Each pump in the adjustment tank is configured with 4 wires. The float switch wire requires DC 48V with a load current of 1A , and is generally a single core wire of 0.75mm2 . The pump line is wired according to the power of the pump. It can be calculated according to the piping and wiring specified in the standard manual. It is calculated by the simple calculation method of 4A for the single-core copper wire per square millimeter . The current of the three-phase electrode is calculated according to the power Ã— 2.2 times. Example: When the motor power is 1.5KW , the rated current is 3.3A per line . If using a 0.75 square millimeter wire, 0.75 x 4 = 3A .

Electrical installation and operation instructions

Automatic working process

When the switch is turned to the automatic position:

A : Lift pump:

B : sewage return pump: 1 set, power is 1KW

Sewage return pump and lift pump linkage

C : mechanical grille: 1 set, power is 0.55KW

Mechanical grille and lift pump linkage

D : Solenoid valve: 1 ( 2 ), 220V

The solenoid valve works for 3 minutes every 8 hours . (can be set according to the actual situation on site)

E : chlorine dioxide generator: 1 set, 220V (electrolysis method ~ 1.5kw )

The chlorine dioxide generator is linked to the lift pump.

F : Two intermediate pool lift pumps (into the filter) 3KW Ã— 2 sets

Manual work process

Installation and use

1. Connect the electrical appliances and the electrical control cabinet with the wires as specified, and check if the wiring is correct.

2. Check if the input power supply voltage is correct.

3. Check whether the electrical appliances meet the requirements and whether the grounding is safe and reliable.

4 , the above conditions meet the requirements, open the total air switch, the entire system is put into operation.

5 , pay special attention to the float connection, bus and up and down position can not be connected wrong, otherwise it can cause frequent switching after the pump working period.

Maintenance and attention

1. The central controller adopts PLC . There are large-scale integrated circuits and various precision electronic components inside. Please do not open it at will.

2 , the electric control box should not be stored in the open air, or placed in places that may splash, condensation, and toxic, corrosive gases.

3 , should be placed vertically when transporting, can not be placed upside down or other forms, can not be installed in places with vibration impact.

5 , can not be installed in places with strong noise and conductive dust.

6. The relative humidity at the place of installation is 80% - 90% , and the ambient temperature is -20 Â°C ~ 40 Â°C. The indoor ventilation should be good, clean and tidy.

Embedding requirements and simple calculation

Equipment biological treatment technology

Aerobic biological treatment technology

According to the growth state of sludge, aerobic biological treatment technology can be divided into two major categories: activated sludge method and biofilm method. Among them, the activated sludge method has a high operating cost and has a sludge expansion problem, so it is not suitable for use in rural areas. In comparison, the biofilm process is easier to maintain and manage, and there is no sludge expansion problem, which can be considered when the land is limited. Biological contact oxidation

Biological contact oxidation is a biofilm treatment technology developed on the basis of biofilters through contact aeration. The biological contact oxidation tank is easy to operate and manage, and is more suitable for use in rural areas.

Aerobic biofilter

The aerobic biofilter generally uses gravel or plastic products as a filter material to uniformly spray the sewage onto the surface of the filter bed and form a biofilm on the surface of the filter material. After the sewage flows through the biofilm, the pollutants are absorbed and absorbed. Aerobic biofilters can be divided into three types: common biofilters, high-load biofilters, and tower biofilters. Among them, the tower type biofilter has high treatment efficiency, small floor space, and can save energy by natural ventilation, so it is suitable for treating rural domestic sewage. The tower biofilter is made of water from the top, and the sewage flows from top to bottom along the tower. Under natural oxygen supply, the aerobic microorganisms form a biofilm on the surface of the filter to remove the suspended, colloidal and dissolved pollution in the sewage. substance.

Anaerobic biological treatment technology

The anaerobic biological treatment technology does not require aeration and oxygenation, and has low sludge production. It is a low-cost, easy-to-manage sewage treatment technology that can meet the technical requirements of rural domestic sewage treatment.

Sewage purification biogas tank

The sewage purification biogas digesters are made up of a series of biogas digesters and anaerobic biofilters. They can be built by several households or single households with flexible layout.

Anaerobic biofilter

The structure of anaerobic biofilter is similar to that of aerobic biological contact oxidation tank. The difference lies in the sealing of the top of the pool. Its engineering investment and operating cost are low, and the requirements for maintenance personnel are not high. It has been applied in rural areas of China.

Compound anaerobic treatment

The composite anaerobic treatment technology is a combination of anaerobic activity method and anaerobic biofilm method. The composite anaerobic reactor consists of a light filter layer, a suspended anaerobic sludge bed, etc. The dual synergistic effect of anaerobic activated sludge and biofilm greatly improves the pollutant removal efficiency. In addition, by providing a special lightweight filter layer in the reactor, sludge loss is prevented, and the volume load and treatment effect of the reactor are improved.

Ecological treatment technology

Artificial wetland

The constructed wetland treatment system is derived from the simulation of natural wetlands, and mainly uses the synergy of plants, substrates and microorganisms in the natural ecosystem to achieve water purification. The main body of the constructed wetland consists of soil and fillers filled at a certain level, and plants are planted on the surface of the bed to form a unique ecosystem. The constructed wetland treatment system has good purification effect, simple process equipment, convenient maintenance and management, low operating cost, and significant ecological and environmental benefits. However, the inflow load requirement is relatively low and the floor space is large. Therefore, it is suitable for use away from urban sewage pipe network and with less capital. Small and medium-sized towns and rural areas with limited technical talents and land available.

Land treatment

Land treatment technology is a treatment method that utilizes a soil - plant - microbial complex ecosystem under artificial control to purify sewage through a series of physical, chemical and biological functions and to realize the recycling of nutrients in water and sewage. According to the flow velocity and flow trajectory of water flow movement, land treatment systems can be divided into four types: slow percolation system, rapid percolation system, surface drainage system and subsurface infiltration system (ie capillary land percolation treatment technology).

Stable pond

The stability pond is a sewage pond with artificial dikes and anti-seepage layers. The purification principle is similar to the self-purification mechanism of natural water bodies. Through the metabolic activities of microorganisms (bacteria, fungi, algae, protozoa, etc.) and the accompanying physical, chemical and physicochemical processes, the pollutants in the sewage are multi-stage converted, degraded and removed. . The stable pond has low construction investment, low operation and maintenance cost, and no sludge treatment, but the load is low, the land occupation is large, the climate is greatly affected, and the treatment effect is unstable. In order to further strengthen the treatment effect, many new types of ponds and combination ponds have been introduced at home and abroad. Such as high-efficiency algae ponds with continuous stirring devices, aquatic plant ponds that use aquatic vascular plants to improve treatment efficiency, multi-stage tandem ponds with multiple aerobic and anaerobic stabilization ponds, and advanced integrated ponds.

Materialized processing technology

The physical and chemical treatment methods of sewage mainly include: coagulation, air flotation, adsorption, ion exchange, electrodialysis, reverse osmosis and ultrafiltration. Among the various physical and chemical treatment technologies, only the coagulation technology is relatively in line with the rural requirements. The great advantage of Zui is that it can select the appropriate flocculant according to the nature of the pollutants in the sewage to ensure the efficient removal of pollutants. The coagulation technology has a good effect on the removal of suspended solids, metal ions, colloidal substances and inorganic phosphorus, but the removal ability of organic matter and nitrogen is relatively weak, and it is necessary to continuously add the medicament during the operation, so the running cost is high. In rural areas of China, coagulation technology is mainly used as a pretreatment measure or chemical phosphorus removal for ecological treatment systems.
